LCD Video Wall

The ultimate solution for displaying your content in a bold and impactful way. Our video wall screen is designed to create stunning visual displays that capture the attention of your audience and leave a lasting impression. 49-inch ultra-narrow bezel LCD splicing screen adopts LED backlight, which has the advantages of a clearer picture, higher brightness, higher contrast, longer service life, good color saturation, low power consumption, energy conservation, and environmental protection. So whether you're looking to create an eye-catching display for your business, organization, or event, our LCD video wall screen is the perfect solution to make your content shine.

Product Features

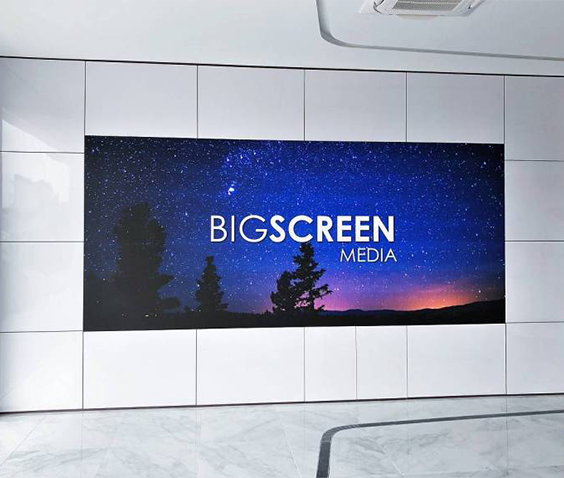

Ultra-Definition DID LCD Video Wall

This product adopts DID LCD splicing screen, with splicing bezel of 3.5mm and high resolution (1920) × 1080), high brightness (500cd / m2), high contrast (4500:1), wide viewing angle (178 degrees) HD LED display panel, supporting 1080P Full HD digital video display.
Environmental protection and health: LCD splicing screen has low calorific value, no radiation, no flicker, no eye injury and no harmful substances (such as lead and mercury). It is an environmentally friendly and healthy splicing curtain wall. In some developed countries in Europe and America, LCD splicing curtain wall has replaced the traditional rear projection splicing curtain wall and become the mainstream.

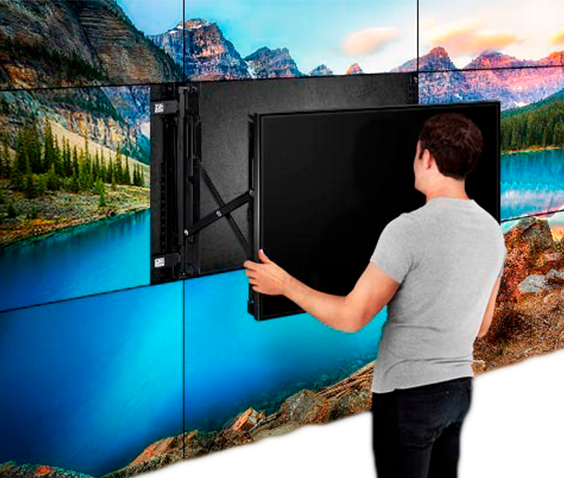

Simplified Installation with Block Splicing Structure

This product adopts DID LCD splicing screen, with splicing bezel of 3.5mm and high resolution (1920) × 1080), high brightness (500cd / m2), high contrast (4500:1), wide viewing angle (178 degrees) HD LED display panel, supporting 1080P Full HD digital video display.
The product has a block splicing appearance structure, the back shell has fixed screw hole, screw can be fixed, simple and quick installation, to solve the problem of semi-finished product installation of Samsung DID LCD splicing unit.

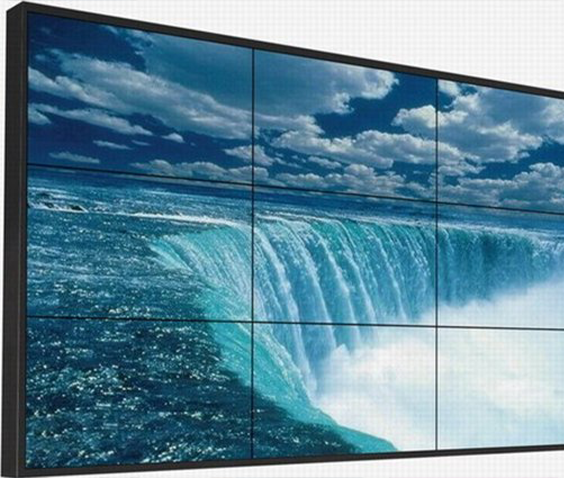

Flexible Installation Multi-Interface Video Wall

Advanced design, flexible installation, and reliable performance for your video wall needs.
The product provides VGA, HDMI, DVI and BNC signal interfaces and other signal interfaces can be matched as required

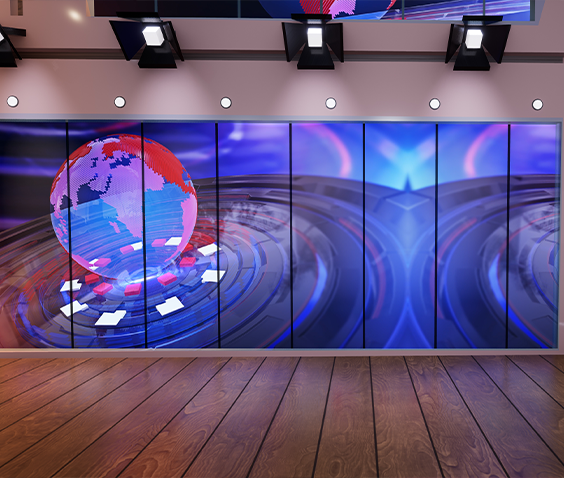

Versatile Applications for Ultra-Narrow Bezel LCD Splicing Wall
Versatile Functionality for Your Display Needs

Revolutionary Image Processing Technology

Using the first original "anti-aliasing flow processing technology", can make the low pixel image in the full HD display clearly reproduction; De-interlacing processing technology to eliminate flicker; Deinterleaving algorithm, eliminate "sawtooth"; Dynamic interpolation compensation, 3D dynamic digital noise reduction, 3D comb filtering, 10-bit digital brightness and color enhancement, automatic skin color correction, 3D motion compensation, nonlinear scaling and other international leading processing technology; Image frame optional compensation or cover, full HD signal real-time processing.

Engage your audience like never before

Sizes, Specifications and Features

SOFTWARE & SERVICES

Features	Description
Ultra-Definition DID LCD Video Wall	This product adopts DID LCD splicing screen, with splicing bezel of 3.5mm and high resolution (1920) × 1080), high brightness (500cd / m2), high contrast (4500:1), wide viewing angle (178 degrees) HD LED display panel, supporting 1080P Full HD digital video display.
Simplified Installation with Block Splicing Structure	This product adopts DID LCD splicing screen, with splicing bezel of 3.5mm and high resolution (1920) × 1080), high brightness (500cd / m2), high contrast (4500:1), wide viewing angle (178 degrees) HD LED display panel, supporting 1080P Full HD digital video display.
Flexible Installation Multi-Interface Video Wall	Advanced design, flexible installation, and reliable performance for your video wall needs. The product provides VGA, HDMI, DVI and BNC signal interfaces and other signal interfaces can be matched as required
Revolutionary Image Processing Technology	Using the first original "anti-aliasing flow processing technology", can make the low pixel image in the full HD display clearly reproduction; De-interlacing processing technology to eliminate flicker; Deinterleaving algorithm, eliminate "sawtooth"; Dynamic interpolation compensation, 3D dynamic digital noise reduction, 3D comb filtering, 10-bit digital brightness and color enhancement, automatic skin color correction, 3D motion compensation, nonlinear scaling and other international leading processing technology; Image frame optional compensation or cover, full HD signal real-time processing.
Environmental protection	Environmental protection and health: LCD splicing screen has low calorific value, no radiation, no flicker, no eye injury and no harmful substances (such as lead and mercury). It is an environmentally friendly and healthy splicing curtain wall. In some developed countries in Europe and America, LCD splicing curtain wall has replaced the traditional rear projection splicing curtain wall and become the mainstream.

Specifications Features

Interactive Display Diagonal	65	55	49
Model	AY-VW-065A	AY-VW-055A	AY-VW-049A
Screen size (diagonal)	65 inch	55 inch	49 inch
Splicing gap	3.5mm	3.5mm	3.5mm
Backlight	LED	LED	LED
Aspect Ratio	16:9	16:9	16:9
Max Resolution	1920×1080（Backwards compatible）	1920×1080（Backwards compatible）	1920×1080（Backwards compatible）
Contrast Ratio	5000:1	4500:1	4500:1
Brightness	500cd/㎡	500cd/㎡(or 700cd/㎡）	500cd/㎡(or 700cd/㎡）
Active area	1428.68mm(H) × 803.72mm(V)	1209.8mm(H) × 680.6mm(V)	1074.0mm(H) × 604.2mm(V)
Color saturation	97%	97%	97%
Response time	6.5ms	6.5ms	6.5ms
Viewing Angle	178°	178°	178°
Running time	7*24hrs	7*24hrs	7*24hrs
Service life	about 60,000 hours	about 60,000 hours	about 60,000 hours
Panel color	Black/ Custom color	Black/ Custom color	Black/ Custom color
anel color	PAL/NTSC adapting 480I、576I、720I、720P、1080I、1080P	PAL/NTSC adapting 480I、576I、720I、720P、1080I、1080P	PAL/NTSC adapting 480I、576I、720I、720P、1080I、1080P
Interface	Input：Power connector、VGA 、DVI 、HDMI、CVBS - Output：CVBS、DVI	Input：Power connector、VGA 、DVI 、HDMI、CVBS - Output：CVBS、DVI	Input：Power connector、VGA 、DVI 、HDMI、CVBS - Output：CVBS、DVI
Control port	Input: serial port(RS232) - Output: serial port(RS232)×2	Input: serial port(RS232) - Output: serial port(RS232)×2	Input: serial port(RS232) - Output: serial port(RS232)×2
Panel control	Remote control	Remote control	Remote control
Third party control	PC control, Cellphone/ iPad control (custumized)	PC control, Cellphone/ iPad control (custumized)	PC control, Cellphone/ iPad control (custumized)
Display function overview	Multi-signal split screen display, whole screen display, any combination of display, subtitles display	Multi-signal split screen display, whole screen display, any combination of display, subtitles display	Multi-signal split screen display, whole screen display, any combination of display, subtitles display
Overlay roaming display	Yes	Yes	Yes
Window cross screen	Yes	Yes	Yes
Power consumption	Operating power：≤190W; Standby power：≤3W	Operating power：≤170W; Standby power：≤3W	Operating power：≤150W; Standby power：≤3W
Language	English（Multilingual optional）	English（Multilingual optional）	English（Multilingual optional）
Installation	Ultra-thin design, embedded/wall hanging/lifting/desktop optional, customized	Ultra-thin design, embedded/wall hanging/lifting/desktop optional, customized	Ultra-thin design, embedded/wall hanging/lifting/desktop optional, customized
Structure	Strong solid metal casing, anti-static, anti-magnetic field, anti-strong interference	Strong solid metal casing, anti-static, anti-magnetic field, anti-strong interference	Strong solid metal casing, anti-static, anti-magnetic field, anti-strong interference
Operating temperature / humidity	0℃～50℃ / 20%～80%（non-condensing）	0℃～50℃ / 20%～80%（non-condensing）	0℃～50℃ / 20%～80%（non-condensing）
Storage temperature / humidity	-10℃～60℃ / 5～95%（non-condensing）	-10℃～60℃ / 5～95%（non-condensing）	-10℃～60℃ / 5～95%（non-condensing）
Accessories	Manual, Power cable, Certification, Warranty card	Manual, Power cable, Certification, Warranty card	Manual, Power cable, Certification, Warranty card
Unit Dimension(mm)	1432.58(L)×803.62(H)×69(D)	1213.5(L)×684.3(H)×69(D)	1077.6(L)×607.8(H)×54.6(D)
Unit Weight	about 30kg (excluding accessories)	about 24kg (excluding accessories)	about 16kg (excluding accessories)

Environment

Storage temperature	-20 °C~65 °C	-20 °C~65 °C	-20 °C~65 °C
Working temperature	0 °C~45 °C	0 °C~45 °C	0 °C~45 °C
Working humidity	10%~90%	10%~90%	10%~90%

Software

Features	Description
Ultra-Definition DID LCD Video Wall	This product adopts DID LCD splicing screen, with splicing bezel of 3.5mm and high resolution (1920) × 1080), high brightness (500cd / m2), high contrast (4500:1), wide viewing angle (178 degrees) HD LED display panel, supporting 1080P Full HD digital video display.
Simplified Installation with Block Splicing Structure	This product adopts DID LCD splicing screen, with splicing bezel of 3.5mm and high resolution (1920) × 1080), high brightness (500cd / m2), high contrast (4500:1), wide viewing angle (178 degrees) HD LED display panel, supporting 1080P Full HD digital video display.
Flexible Installation Multi-Interface Video Wall	Advanced design, flexible installation, and reliable performance for your video wall needs. The product provides VGA, HDMI, DVI and BNC signal interfaces and other signal interfaces can be matched as required
Revolutionary Image Processing Technology	Using the first original "anti-aliasing flow processing technology", can make the low pixel image in the full HD display clearly reproduction; De-interlacing processing technology to eliminate flicker; Deinterleaving algorithm, eliminate "sawtooth"; Dynamic interpolation compensation, 3D dynamic digital noise reduction, 3D comb filtering, 10-bit digital brightness and color enhancement, automatic skin color correction, 3D motion compensation, nonlinear scaling and other international leading processing technology; Image frame optional compensation or cover, full HD signal real-time processing.
Environmental protection	Environmental protection and health: LCD splicing screen has low calorific value, no radiation, no flicker, no eye injury and no harmful substances (such as lead and mercury). It is an environmentally friendly and healthy splicing curtain wall. In some developed countries in Europe and America, LCD splicing curtain wall has replaced the traditional rear projection splicing curtain wall and become the mainstream.

Specifications Features

Interactive Display Diagonal	65
Model	AY-VW-065A
Screen size (diagonal)	65 inch
Splicing gap	3.5mm
Backlight	LED
Aspect Ratio	16:9
Max Resolution	1920×1080（Backwards compatible）
Contrast Ratio	5000:1
Brightness	500cd/㎡
Active area	1428.68mm(H) × 803.72mm(V)
Color saturation	97%
Response time	6.5ms
Viewing Angle	178°
Running time	7*24hrs
Service life	about 60,000 hours
Panel color	Black/ Custom color
anel color	PAL/NTSC adapting 480I、576I、720I、720P、1080I、1080P
Interface	Input：Power connector、VGA 、DVI 、HDMI、CVBS - Output：CVBS、DVI
Control port	Input: serial port(RS232) - Output: serial port(RS232)×2
Panel control	Remote control
Third party control	PC control, Cellphone/ iPad control (custumized)
Display function overview	Multi-signal split screen display, whole screen display, any combination of display, subtitles display
Overlay roaming display	Yes
Window cross screen	Yes
Power consumption	Operating power：≤190W; Standby power：≤3W
Language	English（Multilingual optional）
Installation	Ultra-thin design, embedded/wall hanging/lifting/desktop optional, customized
Structure	Strong solid metal casing, anti-static, anti-magnetic field, anti-strong interference
Operating temperature / humidity	0℃～50℃ / 20%～80%（non-condensing）
Storage temperature / humidity	-10℃～60℃ / 5～95%（non-condensing）
Accessories	Manual, Power cable, Certification, Warranty card
Unit Dimension(mm)	1432.58(L)×803.62(H)×69(D)
Unit Weight	about 30kg (excluding accessories)

Environment


Storage temperature	-20 °C~65 °C
Working temperature	0 °C~45 °C
Working humidity	10%~90%

Software

Features	Description
Ultra-Definition DID LCD Video Wall	This product adopts DID LCD splicing screen, with splicing bezel of 3.5mm and high resolution (1920) × 1080), high brightness (500cd / m2), high contrast (4500:1), wide viewing angle (178 degrees) HD LED display panel, supporting 1080P Full HD digital video display.
Simplified Installation with Block Splicing Structure	This product adopts DID LCD splicing screen, with splicing bezel of 3.5mm and high resolution (1920) × 1080), high brightness (500cd / m2), high contrast (4500:1), wide viewing angle (178 degrees) HD LED display panel, supporting 1080P Full HD digital video display.
Flexible Installation Multi-Interface Video Wall	Advanced design, flexible installation, and reliable performance for your video wall needs. The product provides VGA, HDMI, DVI and BNC signal interfaces and other signal interfaces can be matched as required
Revolutionary Image Processing Technology	Using the first original "anti-aliasing flow processing technology", can make the low pixel image in the full HD display clearly reproduction; De-interlacing processing technology to eliminate flicker; Deinterleaving algorithm, eliminate "sawtooth"; Dynamic interpolation compensation, 3D dynamic digital noise reduction, 3D comb filtering, 10-bit digital brightness and color enhancement, automatic skin color correction, 3D motion compensation, nonlinear scaling and other international leading processing technology; Image frame optional compensation or cover, full HD signal real-time processing.
Environmental protection	Environmental protection and health: LCD splicing screen has low calorific value, no radiation, no flicker, no eye injury and no harmful substances (such as lead and mercury). It is an environmentally friendly and healthy splicing curtain wall. In some developed countries in Europe and America, LCD splicing curtain wall has replaced the traditional rear projection splicing curtain wall and become the mainstream.

Specifications Features

Interactive Display Diagonal	55
Model	AY-VW-055A
Screen size (diagonal)	55 inch
Splicing gap	3.5mm
Backlight	LED
Aspect Ratio	16:9
Max Resolution	1920×1080（Backwards compatible）
Contrast Ratio	4500:1
Brightness	500cd/㎡(or 700cd/㎡）
Active area	1209.8mm(H) × 680.6mm(V)
Color saturation	97%
Response time	6.5ms
Viewing Angle	178°
Running time	7*24hrs
Service life	about 60,000 hours
Panel color	Black/ Custom color
anel color	PAL/NTSC adapting 480I、576I、720I、720P、1080I、1080P
Interface	Input：Power connector、VGA 、DVI 、HDMI、CVBS - Output：CVBS、DVI
Control port	Input: serial port(RS232) - Output: serial port(RS232)×2
Panel control	Remote control
Third party control	PC control, Cellphone/ iPad control (custumized)
Display function overview	Multi-signal split screen display, whole screen display, any combination of display, subtitles display
Overlay roaming display	Yes
Window cross screen	Yes
Power consumption	Operating power：≤170W; Standby power：≤3W
Language	English（Multilingual optional）
Installation	Ultra-thin design, embedded/wall hanging/lifting/desktop optional, customized
Structure	Strong solid metal casing, anti-static, anti-magnetic field, anti-strong interference
Operating temperature / humidity	0℃～50℃ / 20%～80%（non-condensing）
Storage temperature / humidity	-10℃～60℃ / 5～95%（non-condensing）
Accessories	Manual, Power cable, Certification, Warranty card
Unit Dimension(mm)	1213.5(L)×684.3(H)×69(D)
Unit Weight	about 24kg (excluding accessories)

Environment


Storage temperature	-20 °C~65 °C
Working temperature	0 °C~45 °C
Working humidity	10%~90%

Software

Features	Description
Ultra-Definition DID LCD Video Wall	This product adopts DID LCD splicing screen, with splicing bezel of 3.5mm and high resolution (1920) × 1080), high brightness (500cd / m2), high contrast (4500:1), wide viewing angle (178 degrees) HD LED display panel, supporting 1080P Full HD digital video display.
Simplified Installation with Block Splicing Structure	This product adopts DID LCD splicing screen, with splicing bezel of 3.5mm and high resolution (1920) × 1080), high brightness (500cd / m2), high contrast (4500:1), wide viewing angle (178 degrees) HD LED display panel, supporting 1080P Full HD digital video display.
Flexible Installation Multi-Interface Video Wall	Advanced design, flexible installation, and reliable performance for your video wall needs. The product provides VGA, HDMI, DVI and BNC signal interfaces and other signal interfaces can be matched as required
Revolutionary Image Processing Technology	Using the first original "anti-aliasing flow processing technology", can make the low pixel image in the full HD display clearly reproduction; De-interlacing processing technology to eliminate flicker; Deinterleaving algorithm, eliminate "sawtooth"; Dynamic interpolation compensation, 3D dynamic digital noise reduction, 3D comb filtering, 10-bit digital brightness and color enhancement, automatic skin color correction, 3D motion compensation, nonlinear scaling and other international leading processing technology; Image frame optional compensation or cover, full HD signal real-time processing.
Environmental protection	Environmental protection and health: LCD splicing screen has low calorific value, no radiation, no flicker, no eye injury and no harmful substances (such as lead and mercury). It is an environmentally friendly and healthy splicing curtain wall. In some developed countries in Europe and America, LCD splicing curtain wall has replaced the traditional rear projection splicing curtain wall and become the mainstream.

Specifications Features

Interactive Display Diagonal	49
Model	AY-VW-049A
Screen size (diagonal)	49 inch
Splicing gap	3.5mm
Backlight	LED
Aspect Ratio	16:9
Max Resolution	1920×1080（Backwards compatible）
Contrast Ratio	4500:1
Brightness	500cd/㎡(or 700cd/㎡）
Active area	1074.0mm(H) × 604.2mm(V)
Color saturation	97%
Response time	6.5ms
Viewing Angle	178°
Running time	7*24hrs
Service life	about 60,000 hours
Panel color	Black/ Custom color
anel color	PAL/NTSC adapting 480I、576I、720I、720P、1080I、1080P
Interface	Input：Power connector、VGA 、DVI 、HDMI、CVBS - Output：CVBS、DVI
Control port	Input: serial port(RS232) - Output: serial port(RS232)×2
Panel control	Remote control
Third party control	PC control, Cellphone/ iPad control (custumized)
Display function overview	Multi-signal split screen display, whole screen display, any combination of display, subtitles display
Overlay roaming display	Yes
Window cross screen	Yes
Power consumption	Operating power：≤150W; Standby power：≤3W
Language	English（Multilingual optional）
Installation	Ultra-thin design, embedded/wall hanging/lifting/desktop optional, customized
Structure	Strong solid metal casing, anti-static, anti-magnetic field, anti-strong interference
Operating temperature / humidity	0℃～50℃ / 20%～80%（non-condensing）
Storage temperature / humidity	-10℃～60℃ / 5～95%（non-condensing）
Accessories	Manual, Power cable, Certification, Warranty card
Unit Dimension(mm)	1077.6(L)×607.8(H)×54.6(D)
Unit Weight	about 16kg (excluding accessories)

Environment


Storage temperature	-20 °C~65 °C
Working temperature	0 °C~45 °C
Working humidity	10%~90%

Software

System	Equipped with Android 11 intelligent operating system and unique UI design. 4-core 64-bit high-performance CPU, A55x4 architecture, maximum support 1.8GHz clock
Appearance	A stylish and user-friendly touch display featuring a sleek design, high-precision touch capabilities, versatile connectivity options, and the ability to support both Android and PC systems.
Whiteboard	A high-resolution whiteboard with touch capabilities, offering precise handwriting, multiple annotation features, versatile interface compatibility, and enhanced safety measures with optional anti-glare glass
Intelligent operation	A versatile interactive display with seamless switching between Android and PC systems, intuitive navigation, automatic software updates, and helpful features like predictive text and auto-correct for improved productivity.
Conference and business functions	An all-in-one meeting solution featuring efficient software, dual WiFi network card, multi-screen interaction capabilities, customizable display settings, and versatile functionality for various applications such as conferences, advertising displays, and more.

Specifications Features

Interactive Display Diagonal	100
OPS PC	Smart555 OPS PC i5
Camera	Smart555 TrackCam
Keyboard/Mouse	Full length Logitech Wireless keyboard with touchpad (range 33ft)
Cables and accessories	1x HDMI Cable, 1x Power cable, 1x USB Touch Cable, 1x Type C Cable, 2x Stylus pens with anti-bacterial coating, 1x Remote control for Display, 1x Remote control for Camera
Wall Mount	VESA Standard 400 x 200 Flush Wall mount
Operating System	Android 11
RAM	8 GB
Storage	64 GB
Processor	1 Quad-core ARM cortex A55 (up to 1.8 Ghz)
Panel Backlight	LED
Resolution	4K UHD (3840 * 2160)
Brightness	400 cd/m²
Aspect Ratio	16:9
Refresh Rate	60Hz
Display Colors	1.07 Billion (10 bit)
Viewing Angle	178°
Blue light filter	Yes
Touch Type	Zero Bonding IR (Gen 2)
Touch Points	40
Touch Accuracy	1.5 mm
Touch Response Time	<7 ms
Surface Protection	Level 7 MoHS Anti-Glare and Anti-Fingerprint
Speakers	2x 16W with stereo output
Sensors	1x Ambient Light Sensor for adoptive screen brightness
Connectivity	Wifi 6 (2.4Ghz & 5Ghz), Gigabit Ethernet (1000M), Bluetooth 5.2
Input/Output Ports (Side)	2x HDMI-In, 1x VGA-In, 1x VGA Audio-In, 1x HDMI-Out, 1x USB Touch, 1x Audio-Out (3.5mm), 1x SPDIF- Out, 1x RS-232, 2x-RJ-45, 2x USB 3.0, 1x USB 2.0
Input/Output Ports (Front)	1x HDMI-In, 1x USB Touch, 2x USB 3.0, 1x USB Type-C (65W PD)
Power Requirements	100 - 240v AC 50-60 Hz
Power Consumption (typical)	160W
Power Consumption (maximum)	320W
Product Weight	57.54 lbs
Product Dimensions (L x H x W)	50.04" x 30.47" x 3.43"
Shipping Weight	75.95 lbs
Shipping Dimensions (L x H x W)	55.16" x 33.82" x 8.66"
Operating System	Windows 10
RAM	16GB
Storage	256 GB
Processor	Intel i5
Graphics	Intel iris XE Graphics
Trsuted Platform Module	TMP 2.0
Input/Output Ports	2x USB 3.0, 2x USB 2.0, 1x USB-C, 1x Mic in, 1x Earphone out, 1x HDMI, 1x RJ45
Connectivity	Gigabit ethernet, Bluetooth, Wifi 6
Resolution	4K UHD
Lens	f=2.2mm with 1/2.7" CMOS sensor
Digital Zoom	Up to 8x
Field of View	110°
Supported functions	Electronic Pan/Tilt/Zoom using built in AI or by using remote control (provided), Supports presenter tracking, Supports auto-framing mode
Microphone	Array microphone

Warranty and Support

Warranty and Support
Warranty	3 Years Standard warranty with options for advanced hardware warranty or extended warranty
Support	Free, live, unlimited support and training by ScreenSkills Gurus.
Certifications	FCC, Energy Star, UL, CE, RoHS, WEEE, CB
