Interactive Screen

The perfect solution for enhancing your presentations, teaching sessions, and group collaborations. Our whiteboard seamlessly combines the power of traditional whiteboards with the latest technology to create an immersive and interactive experience. So whether you're teaching a class, leading a meeting, or working on a group project, our interactive whiteboard is the perfect tool to help you communicate, collaborate, and create.

Product Features

System

  • Equipped with Android 11 intelligent operating system and unique UI design

  • 4-core 64-bit high-performance CPU, A55x4 architecture, maximum support 1.8GHz clock

  • High-performance image processing engine: image motion compensation, color enhancement processing, etc

  • Advanced presentation tools, including the ability to add text, shapes, and multimedia content

  • Customizable settings, allowing you to personalize the board to suit your preferences and needs

Appearance

  • Simple and fashionable design, with touch output, HD input and USB input design in front, convenient operation

  • High-precision infrared touch frame, touch accuracy up to ±2mm,touch height 3.0mm, support up to 40 points touch, high sensitivity

  • The front USB interface supports Android and PC sharing

  • With OPS computer interface, can be expanded into android and computer dual system

  • Sleek and modern design that looks great in any setting, from classrooms to boardrooms

Whiteboard

  • Whiteboard handwriting ultra HD resolution, touch diameter minimum 2mm

  • Support single point, multi-point writing, pen writing, picture insertion, add page, gesture erasing, zoom in and out, undo and restore, scan code sharing

  • Any interface of any channel can be annotated and saved

  • The white board selection function is rich, can move, zoom in and out, copy, change color, etc.

  • Explosion-proof tempered glass, MOHS grade 7 hardness, safety assurance, optional AG anti-glare glass to make writing experience better

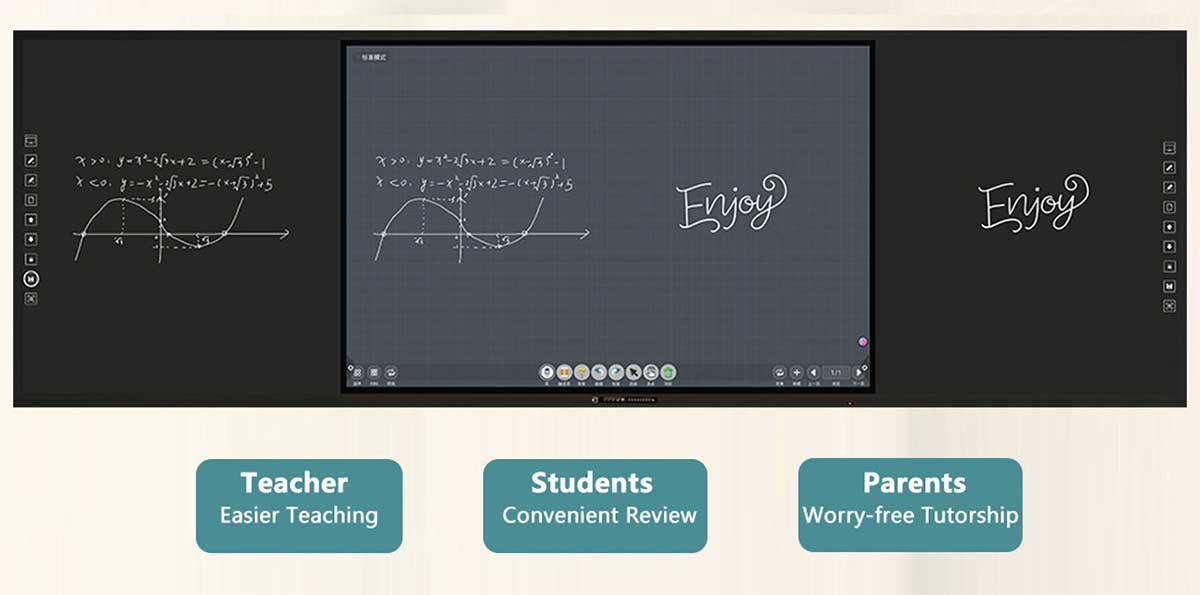

Smart Blackboard

EIBOARD LED Recordable Smart Blackboard 77/94 inch, model as FC-77EB/FC-94EB, is an innovative tool and specially designed for conference rooms and small classrooms.

  • It provides a large, easy-to-read/write display that uses LED technology to present sharp, clear images and text.

  • The blackboard is also recordable, allowing you to capture and save important notes or ideas discussed during the conference.

  • The smart blackboard offers an intuitive touch-screen interface that is user-friendly, making it easy to write, draw or annotate on the board.

  • The smart blackboard can also be connected to various devices, enabling you to import or export content and to collaborate with others remotely.

  • The smart blackboard also built in with 4K camera and 8-array mirophones, easy for online conference.

Overall, the EIBOARD LED recordable Smart Blackboard is a versatile and useful tool for conferences and meetings, offering an intuitive interface, excellent visuals, and convenient collaboration capabilities.

To read more deatils please click here

Intelligent operation

  • One-click open and close android and PC dual system

  • Automatic recognition of external input signal source, easy and convenient screen switching

  • Left and right function navigation bar, convenient and quick operation of common functions

  • Automatic software updates, ensuring that your board is always up to date with the latest features and functionality.

  • Predictive text and auto-correct, helping you to write and communicate more quickly and accurately

Conference and business functions

  • Built-in WPS, welcome interface, multi-screen interaction, remote conference and other efficient meeting software

  • Built-in 2.4GHz / 5 GHz dual WiFi network card, supporting WiFi Internet access and WiFi hotspots at the same time

  • Multi-screen interaction, support multi-channel on the same screen, mirror and reverse control operation, remote photography, video, music, document sharing, picture capture, wireless remote control and other functions

  • Customize boot screen, theme and background, support automatic classification of local media player

  • Pull the function bar on the left and right side, the gesture call mode and touch control switch can be switched freely, so that the conference machine can be turned into an advertising display machine or other commercial display products

Engage your audience like never before

Sizes, Specifications and Features

Software

Features Description
System Equipped with Android 11 intelligent operating system and unique UI design. 4-core 64-bit high-performance CPU, A55x4 architecture, maximum support 1.8GHz clock
Appearance A stylish and user-friendly touch display featuring a sleek design, high-precision touch capabilities, versatile connectivity options, and the ability to support both Android and PC systems.
Whiteboard A high-resolution whiteboard with touch capabilities, offering precise handwriting, multiple annotation features, versatile interface compatibility, and enhanced safety measures with optional anti-glare glass
Intelligent operation A versatile interactive display with seamless switching between Android and PC systems, intuitive navigation, automatic software updates, and helpful features like predictive text and auto-correct for improved productivity.
Conference and business functions An all-in-one meeting solution featuring efficient software, dual WiFi network card, multi-screen interaction capabilities, customizable display settings, and versatile functionality for various applications such as conferences, advertising displays, and more.

Hardware Components

Interactive Display Diagonal 65 75 86 100
OPS PC Smart555 OPS PC i5 Smart555 OPS PC i5 Smart555 OPS PC i5 Smart555 OPS PC i5
Camera Smart555 TrackCam Smart555 TrackCam Smart555 TrackCam Smart555 TrackCam
Keyboard/Mouse Full length Logitech Wireless keyboard with touchpad (range 33ft) Full length Logitech Wireless keyboard with touchpad (range 33ft) Full length Logitech Wireless keyboard with touchpad (range 33ft) Full length Logitech Wireless keyboard with touchpad (range 33ft)
Cables and accessories 1x HDMI Cable, 1x Power cable, 1x USB Touch Cable, 1x Type C Cable, 2x Stylus pens with anti-bacterial coating, 1x Remote control for Display, 1x Remote control for Camera 1x HDMI Cable, 1x Power cable, 1x USB Touch Cable, 1x Type C Cable, 2x Stylus pens with anti-bacterial coating, 1x Remote control for Display, 1x Remote control for Camera 1x HDMI Cable, 1x Power cable, 1x USB Touch Cable, 1x Type C Cable, 2x Stylus pens with anti-bacterial coating, 1x Remote control for Display, 1x Remote control for Camera 1x HDMI Cable, 1x Power cable, 1x USB Touch Cable, 1x Type C Cable, 2x Stylus pens with anti-bacterial coating, 1x Remote control for Display, 1x Remote control for Camera
Wall Mount VESA Standard 400 x 200 Flush Wall mount VESA Standard 400 x 200 Flush Wall mount VESA Standard 400 x 200 Flush Wall mount VESA Standard 400 x 200 Flush Wall mount
Operating System Android 11 Android 11 Android 11 Android 11
RAM 8 GB 8 GB 8 GB 8 GB
Storage 64 GB 64 GB 64 GB 64 GB
Processor 1 Quad-core ARM cortex A55 (up to 1.8 Ghz) 1 Quad-core ARM cortex A55 (up to 1.8 Ghz) 1 Quad-core ARM cortex A55 (up to 1.8 Ghz) 1 Quad-core ARM cortex A55 (up to 1.8 Ghz)
Panel Backlight LED LED LED LED
Resolution 4K UHD (3840 * 2160) 4K UHD (3840 * 2160) 4K UHD (3840 * 2160) 4K UHD (3840 * 2160)
Brightness 400 cd/m² 400 cd/m² 400 cd/m² 400 cd/m²
Aspect Ratio 16:9 16:9 16:9 16:9
Refresh Rate 60Hz 60Hz 60Hz 60Hz
Display Colors 1.07 Billion (10 bit) 1.07 Billion (10 bit) 1.07 Billion (10 bit) 1.07 Billion (10 bit)
Viewing Angle 178° 178° 178° 178°
Blue light filter Yes Yes Yes Yes
Touch Type Zero Bonding IR (Gen 2) Zero Bonding IR (Gen 2) Zero Bonding IR (Gen 2) Zero Bonding IR (Gen 2)
Touch Points 40 40 40 40
Touch Accuracy 1.5 mm 1.5 mm 1.5 mm 1.5 mm
Touch Response Time <7 ms <7 ms <7 ms <7 ms
Surface Protection Level 7 MoHS Anti-Glare and Anti-Fingerprint Level 7 MoHS Anti-Glare and Anti-Fingerprint Level 7 MoHS Anti-Glare and Anti-Fingerprint Level 7 MoHS Anti-Glare and Anti-Fingerprint
Speakers 2x 16W with stereo output 2x 16W with stereo output 2x 16W with stereo output 2x 16W with stereo output
Sensors 1x Ambient Light Sensor for adoptive screen brightness 1x Ambient Light Sensor for adoptive screen brightness 1x Ambient Light Sensor for adoptive screen brightness 1x Ambient Light Sensor for adoptive screen brightness
Connectivity Wifi 6 (2.4Ghz & 5Ghz), Gigabit Ethernet (1000M), Bluetooth 5.2 Wifi 6 (2.4Ghz & 5Ghz), Gigabit Ethernet (1000M), Bluetooth 5.2 Wifi 6 (2.4Ghz & 5Ghz), Gigabit Ethernet (1000M), Bluetooth 5.2 Wifi 6 (2.4Ghz & 5Ghz), Gigabit Ethernet (1000M), Bluetooth 5.2
Input/Output Ports (Side) 2x HDMI-In, 1x VGA-In, 1x VGA Audio-In, 1x HDMI-Out, 1x USB Touch, 1x Audio-Out (3.5mm), 1x SPDIF- Out, 1x RS-232, 2x-RJ-45, 2x USB 3.0, 1x USB 2.0 2x HDMI-In, 1x VGA-In, 1x VGA Audio-In, 1x HDMI-Out, 1x USB Touch, 1x Audio-Out (3.5mm), 1x SPDIF- Out, 1x RS-232, 2x-RJ-45, 2x USB 3.0, 1x USB 2.0 2x HDMI-In, 1x VGA-In, 1x VGA Audio-In, 1x HDMI-Out, 1x USB Touch, 1x Audio-Out (3.5mm), 1x SPDIF- Out, 1x RS-232, 2x-RJ-45, 2x USB 3.0, 1x USB 2.0 2x HDMI-In, 1x VGA-In, 1x VGA Audio-In, 1x HDMI-Out, 1x USB Touch, 1x Audio-Out (3.5mm), 1x SPDIF- Out, 1x RS-232, 2x-RJ-45, 2x USB 3.0, 1x USB 2.0
Input/Output Ports (Front) 1x HDMI-In, 1x USB Touch, 2x USB 3.0, 1x USB Type-C (65W PD) 1x HDMI-In, 1x USB Touch, 2x USB 3.0, 1x USB Type-C (65W PD) 1x HDMI-In, 1x USB Touch, 2x USB 3.0, 1x USB Type-C (65W PD) 1x HDMI-In, 1x USB Touch, 2x USB 3.0, 1x USB Type-C (65W PD)
Power Requirements 100 - 240v AC 50-60 Hz 100 - 240v AC 50-60 Hz 100 - 240v AC 50-60 Hz 100 - 240v AC 50-60 Hz
Power Consumption (typical) 160W 160W 160W 160W
Power Consumption (maximum) 320W 320W 320W 320W
Product Weight 57.54 lbs 57.54 lbs 57.54 lbs 57.54 lbs
Product Dimensions (L x H x W) 50.04" x 30.47" x 3.43" 50.04" x 30.47" x 3.43" 50.04" x 30.47" x 3.43" 50.04" x 30.47" x 3.43"
Shipping Weight 75.95 lbs 75.95 lbs 75.95 lbs 75.95 lbs
Shipping Dimensions (L x H x W) 55.16" x 33.82" x 8.66" 55.16" x 33.82" x 8.66" 55.16" x 33.82" x 8.66" 55.16" x 33.82" x 8.66"
Operating System Windows 10 Windows 10 Windows 10 Windows 10
RAM 16GB 16GB 16GB 16GB
Storage 256 GB 256 GB 256 GB 256 GB
Processor Intel i5 Intel i5 Intel i5 Intel i5
Graphics Intel iris XE Graphics Intel iris XE Graphics Intel iris XE Graphics Intel iris XE Graphics
Trsuted Platform Module TMP 2.0 TMP 2.0 TMP 2.0 TMP 2.0
Input/Output Ports 2x USB 3.0, 2x USB 2.0, 1x USB-C, 1x Mic in, 1x Earphone out, 1x HDMI, 1x RJ45 2x USB 3.0, 2x USB 2.0, 1x USB-C, 1x Mic in, 1x Earphone out, 1x HDMI, 1x RJ45 2x USB 3.0, 2x USB 2.0, 1x USB-C, 1x Mic in, 1x Earphone out, 1x HDMI, 1x RJ45 2x USB 3.0, 2x USB 2.0, 1x USB-C, 1x Mic in, 1x Earphone out, 1x HDMI, 1x RJ45
Connectivity Gigabit ethernet, Bluetooth, Wifi 6 Gigabit ethernet, Bluetooth, Wifi 6 Gigabit ethernet, Bluetooth, Wifi 6 Gigabit ethernet, Bluetooth, Wifi 6
Resolution 4K UHD 4K UHD 4K UHD 4K UHD
Lens f=2.2mm with 1/2.7" CMOS sensor f=2.2mm with 1/2.7" CMOS sensor f=2.2mm with 1/2.7" CMOS sensor f=2.2mm with 1/2.7" CMOS sensor
Digital Zoom Up to 8x Up to 8x Up to 8x Up to 8x
Field of View 110° 110° 110° 110°
Supported functions Electronic Pan/Tilt/Zoom using built in AI or by using remote control (provided), Supports presenter tracking, Supports auto-framing mode Electronic Pan/Tilt/Zoom using built in AI or by using remote control (provided), Supports presenter tracking, Supports auto-framing mode Electronic Pan/Tilt/Zoom using built in AI or by using remote control (provided), Supports presenter tracking, Supports auto-framing mode Electronic Pan/Tilt/Zoom using built in AI or by using remote control (provided), Supports presenter tracking, Supports auto-framing mode
Microphone Array microphone Array microphone Array microphone Array microphone

Warranty and Support

Warranty and Support
Warranty 3 Years Standard warranty with options for advanced hardware warranty or extended warranty 3 Years Standard warranty with options for advanced hardware warranty or extended warranty 3 Years Standard warranty with options for advanced hardware warranty or extended warranty 3 Years Standard warranty with options for advanced hardware warranty or extended warranty
Support Free, live, unlimited support and training by ScreenSkills Gurus. Free, live, unlimited support and training by ScreenSkills Gurus. Free, live, unlimited support and training by ScreenSkills Gurus. Free, live, unlimited support and training by ScreenSkills Gurus.
Certifications RoHS, FCC FCC, Energy Star, UL, CE, RoHS, WEEE, CB FCC, Energy Star, UL, CE, RoHS, WEEE, CB FCC, Energy Star, UL, CE, RoHS, WEEE, CB

Software

FeaturesDescription
System Equipped with Android 11 intelligent operating system and unique UI design. 4-core 64-bit high-performance CPU, A55x4 architecture, maximum support 1.8GHz clock
Appearance A stylish and user-friendly touch display featuring a sleek design, high-precision touch capabilities, versatile connectivity options, and the ability to support both Android and PC systems.
Whiteboard A high-resolution whiteboard with touch capabilities, offering precise handwriting, multiple annotation features, versatile interface compatibility, and enhanced safety measures with optional anti-glare glass
Intelligent operation A versatile interactive display with seamless switching between Android and PC systems, intuitive navigation, automatic software updates, and helpful features like predictive text and auto-correct for improved productivity.
Conference and business functions An all-in-one meeting solution featuring efficient software, dual WiFi network card, multi-screen interaction capabilities, customizable display settings, and versatile functionality for various applications such as conferences, advertising displays, and more.

Hardware Components

Interactive Display Diagonal 65
OPS PC Smart555 OPS PC i5
Camera Smart555 TrackCam
Keyboard/Mouse Full length Logitech Wireless keyboard with touchpad (range 33ft)
Cables and accessories 1x HDMI Cable, 1x Power cable, 1x USB Touch Cable, 1x Type C Cable, 2x Stylus pens with anti-bacterial coating, 1x Remote control for Display, 1x Remote control for Camera
Wall Mount VESA Standard 400 x 200 Flush Wall mount
Operating System Android 11
RAM 8 GB
Storage 64 GB
Processor 1 Quad-core ARM cortex A55 (up to 1.8 Ghz)
Panel Backlight LED
Resolution 4K UHD (3840 * 2160)
Brightness 400 cd/m²
Aspect Ratio 16:9
Refresh Rate 60Hz
Display Colors 1.07 Billion (10 bit)
Viewing Angle 178°
Blue light filter Yes
Touch Type Zero Bonding IR (Gen 2)
Touch Points 40
Touch Accuracy 1.5 mm
Touch Response Time <7 ms
Surface Protection Level 7 MoHS Anti-Glare and Anti-Fingerprint
Speakers 2x 16W with stereo output
Sensors 1x Ambient Light Sensor for adoptive screen brightness
Connectivity Wifi 6 (2.4Ghz & 5Ghz), Gigabit Ethernet (1000M), Bluetooth 5.2
Input/Output Ports (Side) 2x HDMI-In, 1x VGA-In, 1x VGA Audio-In, 1x HDMI-Out, 1x USB Touch, 1x Audio-Out (3.5mm), 1x SPDIF- Out, 1x RS-232, 2x-RJ-45, 2x USB 3.0, 1x USB 2.0
Input/Output Ports (Front) 1x HDMI-In, 1x USB Touch, 2x USB 3.0, 1x USB Type-C (65W PD)
Power Requirements 100 - 240v AC 50-60 Hz
Power Consumption (typical) 160W
Power Consumption (maximum) 320W
Product Weight 57.54 lbs
Product Dimensions (L x H x W) 50.04" x 30.47" x 3.43"
Shipping Weight 75.95 lbs
Shipping Dimensions (L x H x W) 55.16" x 33.82" x 8.66"
Operating System Windows 10
RAM 16GB
Storage 256 GB
Processor Intel i5
Graphics Intel iris XE Graphics
Trsuted Platform Module TMP 2.0
Input/Output Ports 2x USB 3.0, 2x USB 2.0, 1x USB-C, 1x Mic in, 1x Earphone out, 1x HDMI, 1x RJ45
Connectivity Gigabit ethernet, Bluetooth, Wifi 6
Resolution 4K UHD
Lens f=2.2mm with 1/2.7" CMOS sensor
Digital Zoom Up to 8x
Field of View 110°
Supported functions Electronic Pan/Tilt/Zoom using built in AI or by using remote control (provided), Supports presenter tracking, Supports auto-framing mode
Microphone Array microphone

Warranty and Support

Warranty and Support
Warranty 3 Years Standard warranty with options for advanced hardware warranty or extended warranty
Support Free, live, unlimited support and training by ScreenSkills Gurus.
Certifications FCC, Energy Star, UL, CE, RoHS, WEEE, CB

Software

FeaturesDescription
System Equipped with Android 11 intelligent operating system and unique UI design. 4-core 64-bit high-performance CPU, A55x4 architecture, maximum support 1.8GHz clock
Appearance A stylish and user-friendly touch display featuring a sleek design, high-precision touch capabilities, versatile connectivity options, and the ability to support both Android and PC systems.
Whiteboard A high-resolution whiteboard with touch capabilities, offering precise handwriting, multiple annotation features, versatile interface compatibility, and enhanced safety measures with optional anti-glare glass
Intelligent operation A versatile interactive display with seamless switching between Android and PC systems, intuitive navigation, automatic software updates, and helpful features like predictive text and auto-correct for improved productivity.
Conference and business functions An all-in-one meeting solution featuring efficient software, dual WiFi network card, multi-screen interaction capabilities, customizable display settings, and versatile functionality for various applications such as conferences, advertising displays, and more.

Hardware Components

Interactive Display Diagonal 75
OPS PC Smart555 OPS PC i5
Camera Smart555 TrackCam
Keyboard/Mouse Full length Logitech Wireless keyboard with touchpad (range 33ft)
Cables and accessories 1x HDMI Cable, 1x Power cable, 1x USB Touch Cable, 1x Type C Cable, 2x Stylus pens with anti-bacterial coating, 1x Remote control for Display, 1x Remote control for Camera
Wall Mount VESA Standard 400 x 200 Flush Wall mount
Operating System Android 11
RAM 8 GB
Storage 64 GB
Processor 1 Quad-core ARM cortex A55 (up to 1.8 Ghz)
Panel Backlight LED
Resolution 4K UHD (3840 * 2160)
Brightness 400 cd/m²
Aspect Ratio 16:9
Refresh Rate 60Hz
Display Colors 1.07 Billion (10 bit)
Viewing Angle 178°
Blue light filter Yes
Touch Type Zero Bonding IR (Gen 2)
Touch Points 40
Touch Accuracy 1.5 mm
Touch Response Time <7 ms
Surface Protection Level 7 MoHS Anti-Glare and Anti-Fingerprint
Speakers 2x 16W with stereo output
Sensors 1x Ambient Light Sensor for adoptive screen brightness
Connectivity Wifi 6 (2.4Ghz & 5Ghz), Gigabit Ethernet (1000M), Bluetooth 5.2
Input/Output Ports (Side) 2x HDMI-In, 1x VGA-In, 1x VGA Audio-In, 1x HDMI-Out, 1x USB Touch, 1x Audio-Out (3.5mm), 1x SPDIF- Out, 1x RS-232, 2x-RJ-45, 2x USB 3.0, 1x USB 2.0
Input/Output Ports (Front) 1x HDMI-In, 1x USB Touch, 2x USB 3.0, 1x USB Type-C (65W PD)
Power Requirements 100 - 240v AC 50-60 Hz
Power Consumption (typical) 160W
Power Consumption (maximum) 320W
Product Weight 57.54 lbs
Product Dimensions (L x H x W) 50.04" x 30.47" x 3.43"
Shipping Weight 75.95 lbs
Shipping Dimensions (L x H x W) 55.16" x 33.82" x 8.66"
Operating System Windows 10
RAM 16GB
Storage 256 GB
Processor Intel i5
Graphics Intel iris XE Graphics
Trsuted Platform Module TMP 2.0
Input/Output Ports 2x USB 3.0, 2x USB 2.0, 1x USB-C, 1x Mic in, 1x Earphone out, 1x HDMI, 1x RJ45
Connectivity Gigabit ethernet, Bluetooth, Wifi 6
Resolution 4K UHD
Lens f=2.2mm with 1/2.7" CMOS sensor
Digital Zoom Up to 8x
Field of View 110°
Supported functions Electronic Pan/Tilt/Zoom using built in AI or by using remote control (provided), Supports presenter tracking, Supports auto-framing mode
Microphone Array microphone

Warranty and Support

Warranty and Support
Warranty 3 Years Standard warranty with options for advanced hardware warranty or extended warranty
Support Free, live, unlimited support and training by ScreenSkills Gurus.
Certifications FCC, Energy Star, UL, CE, RoHS, WEEE, CB

Software

FeaturesDescription
System Equipped with Android 11 intelligent operating system and unique UI design. 4-core 64-bit high-performance CPU, A55x4 architecture, maximum support 1.8GHz clock
Appearance A stylish and user-friendly touch display featuring a sleek design, high-precision touch capabilities, versatile connectivity options, and the ability to support both Android and PC systems.
Whiteboard A high-resolution whiteboard with touch capabilities, offering precise handwriting, multiple annotation features, versatile interface compatibility, and enhanced safety measures with optional anti-glare glass
Intelligent operation A versatile interactive display with seamless switching between Android and PC systems, intuitive navigation, automatic software updates, and helpful features like predictive text and auto-correct for improved productivity.
Conference and business functions An all-in-one meeting solution featuring efficient software, dual WiFi network card, multi-screen interaction capabilities, customizable display settings, and versatile functionality for various applications such as conferences, advertising displays, and more.

Hardware Components

Interactive Display Diagonal 86
OPS PC Smart555 OPS PC i5
Camera Smart555 TrackCam
Keyboard/Mouse Full length Logitech Wireless keyboard with touchpad (range 33ft)
Cables and accessories 1x HDMI Cable, 1x Power cable, 1x USB Touch Cable, 1x Type C Cable, 2x Stylus pens with anti-bacterial coating, 1x Remote control for Display, 1x Remote control for Camera
Wall Mount VESA Standard 400 x 200 Flush Wall mount
Operating System Android 11
RAM 8 GB
Storage 64 GB
Processor 1 Quad-core ARM cortex A55 (up to 1.8 Ghz)
Panel Backlight LED
Resolution 4K UHD (3840 * 2160)
Brightness 400 cd/m²
Aspect Ratio 16:9
Refresh Rate 60Hz
Display Colors 1.07 Billion (10 bit)
Viewing Angle 178°
Blue light filter Yes
Touch Type Zero Bonding IR (Gen 2)
Touch Points 40
Touch Accuracy 1.5 mm
Touch Response Time <7 ms
Surface Protection Level 7 MoHS Anti-Glare and Anti-Fingerprint
Speakers 2x 16W with stereo output
Sensors 1x Ambient Light Sensor for adoptive screen brightness
Connectivity Wifi 6 (2.4Ghz & 5Ghz), Gigabit Ethernet (1000M), Bluetooth 5.2
Input/Output Ports (Side) 2x HDMI-In, 1x VGA-In, 1x VGA Audio-In, 1x HDMI-Out, 1x USB Touch, 1x Audio-Out (3.5mm), 1x SPDIF- Out, 1x RS-232, 2x-RJ-45, 2x USB 3.0, 1x USB 2.0
Input/Output Ports (Front) 1x HDMI-In, 1x USB Touch, 2x USB 3.0, 1x USB Type-C (65W PD)
Power Requirements 100 - 240v AC 50-60 Hz
Power Consumption (typical) 160W
Power Consumption (maximum) 320W
Product Weight 57.54 lbs
Product Dimensions (L x H x W) 50.04" x 30.47" x 3.43"
Shipping Weight 75.95 lbs
Shipping Dimensions (L x H x W) 55.16" x 33.82" x 8.66"
Operating System Windows 10
RAM 16GB
Storage 256 GB
Processor Intel i5
Graphics Intel iris XE Graphics
Trsuted Platform Module TMP 2.0
Input/Output Ports 2x USB 3.0, 2x USB 2.0, 1x USB-C, 1x Mic in, 1x Earphone out, 1x HDMI, 1x RJ45
Connectivity Gigabit ethernet, Bluetooth, Wifi 6
Resolution 4K UHD
Lens f=2.2mm with 1/2.7" CMOS sensor
Digital Zoom Up to 8x
Field of View 110°
Supported functions Electronic Pan/Tilt/Zoom using built in AI or by using remote control (provided), Supports presenter tracking, Supports auto-framing mode
Microphone Array microphone

Warranty and Support

Warranty and Support
Warranty 3 Years Standard warranty with options for advanced hardware warranty or extended warranty
Support Free, live, unlimited support and training by ScreenSkills Gurus.
Certifications FCC, Energy Star, UL, CE, RoHS, WEEE, CB

Software

FeaturesDescription
System Equipped with Android 11 intelligent operating system and unique UI design. 4-core 64-bit high-performance CPU, A55x4 architecture, maximum support 1.8GHz clock
Appearance A stylish and user-friendly touch display featuring a sleek design, high-precision touch capabilities, versatile connectivity options, and the ability to support both Android and PC systems.
Whiteboard A high-resolution whiteboard with touch capabilities, offering precise handwriting, multiple annotation features, versatile interface compatibility, and enhanced safety measures with optional anti-glare glass
Intelligent operation A versatile interactive display with seamless switching between Android and PC systems, intuitive navigation, automatic software updates, and helpful features like predictive text and auto-correct for improved productivity.
Conference and business functions An all-in-one meeting solution featuring efficient software, dual WiFi network card, multi-screen interaction capabilities, customizable display settings, and versatile functionality for various applications such as conferences, advertising displays, and more.

Hardware Components

Interactive Display Diagonal 100
OPS PC Smart555 OPS PC i5
Camera Smart555 TrackCam
Keyboard/Mouse Full length Logitech Wireless keyboard with touchpad (range 33ft)
Cables and accessories 1x HDMI Cable, 1x Power cable, 1x USB Touch Cable, 1x Type C Cable, 2x Stylus pens with anti-bacterial coating, 1x Remote control for Display, 1x Remote control for Camera
Wall Mount VESA Standard 400 x 200 Flush Wall mount
Operating System Android 11
RAM 8 GB
Storage 64 GB
Processor 1 Quad-core ARM cortex A55 (up to 1.8 Ghz)
Panel Backlight LED
Resolution 4K UHD (3840 * 2160)
Brightness 400 cd/m²
Aspect Ratio 16:9
Refresh Rate 60Hz
Display Colors 1.07 Billion (10 bit)
Viewing Angle 178°
Blue light filter Yes
Touch Type Zero Bonding IR (Gen 2)
Touch Points 40
Touch Accuracy 1.5 mm
Touch Response Time <7 ms
Surface Protection Level 7 MoHS Anti-Glare and Anti-Fingerprint
Speakers 2x 16W with stereo output
Sensors 1x Ambient Light Sensor for adoptive screen brightness
Connectivity Wifi 6 (2.4Ghz & 5Ghz), Gigabit Ethernet (1000M), Bluetooth 5.2
Input/Output Ports (Side) 2x HDMI-In, 1x VGA-In, 1x VGA Audio-In, 1x HDMI-Out, 1x USB Touch, 1x Audio-Out (3.5mm), 1x SPDIF- Out, 1x RS-232, 2x-RJ-45, 2x USB 3.0, 1x USB 2.0
Input/Output Ports (Front) 1x HDMI-In, 1x USB Touch, 2x USB 3.0, 1x USB Type-C (65W PD)
Power Requirements 100 - 240v AC 50-60 Hz
Power Consumption (typical) 160W
Power Consumption (maximum) 320W
Product Weight 57.54 lbs
Product Dimensions (L x H x W) 50.04" x 30.47" x 3.43"
Shipping Weight 75.95 lbs
Shipping Dimensions (L x H x W) 55.16" x 33.82" x 8.66"
Operating System Windows 10
RAM 16GB
Storage 256 GB
Processor Intel i5
Graphics Intel iris XE Graphics
Trsuted Platform Module TMP 2.0
Input/Output Ports 2x USB 3.0, 2x USB 2.0, 1x USB-C, 1x Mic in, 1x Earphone out, 1x HDMI, 1x RJ45
Connectivity Gigabit ethernet, Bluetooth, Wifi 6
Resolution 4K UHD
Lens f=2.2mm with 1/2.7" CMOS sensor
Digital Zoom Up to 8x
Field of View 110°
Supported functions Electronic Pan/Tilt/Zoom using built in AI or by using remote control (provided), Supports presenter tracking, Supports auto-framing mode
Microphone Array microphone

Warranty and Support

Warranty and Support
Warranty 3 Years Standard warranty with options for advanced hardware warranty or extended warranty
Support Free, live, unlimited support and training by ScreenSkills Gurus.
Certifications FCC, Energy Star, UL, CE, RoHS, WEEE, CB
Designed By Optimal Pass
